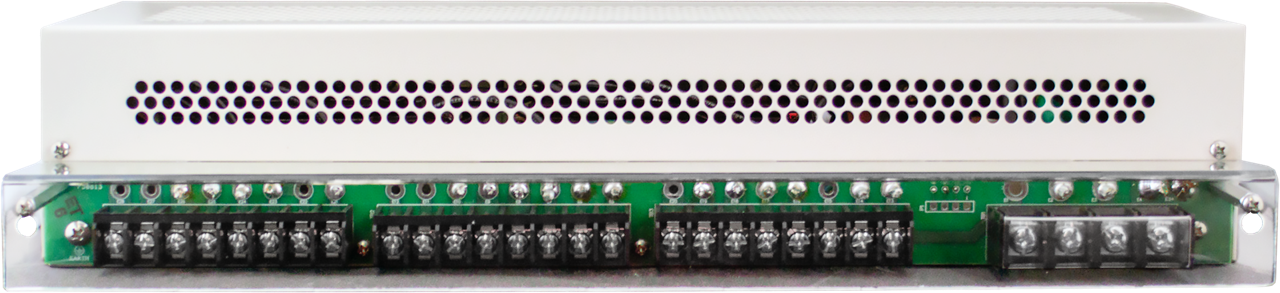

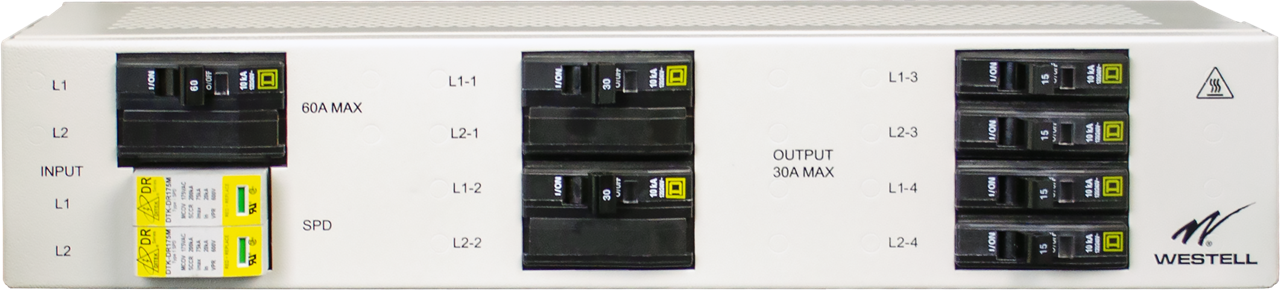

AC Load Center Panel, Preconfigured 60A/240Vac Input Breaker

Specifications
Resources

Voltage:	120/240Vac (split-phase), 60Hz
Input Breaker:	60A max, QOU260 installed
Current/Bus:	48A max out per Line continuous Line1, Line2, Neutral, Ground
Input Terminals:	Barrier screw, single M5 0.51” max lug width
Outputs/Bus:	4 single-pole outputs/Line
Output Breaker:	30A max, Positions 1 and 2, L1 and L2, QOU230 installed x 2 15A max, Positions 3 and 4, L1 and L2, QOU115 installed x 4
Output Terminals:	Barrier screw, single #8 0.45” max lug width
Ground Terminals:	Dual stud ¼-20 @ 5/8” C-C
Surge Protection:	Pluggable, field-replaceable modules, 120/240V protection, UL 1449 45h edition
Alarms:	0.045” wire wrap pin, Dry-form C NC, NO, C pins
Compliance:	UL 62368-1 Listed
Operating Temperture:	-40C to +65C
Dimensions (W x H x D):	17” x 3.55” x 5.25”
Weight:	~9 lbs (4.08 kg)
Color:	Off-white

A90-ACP60B Documentation
