Product Highlights

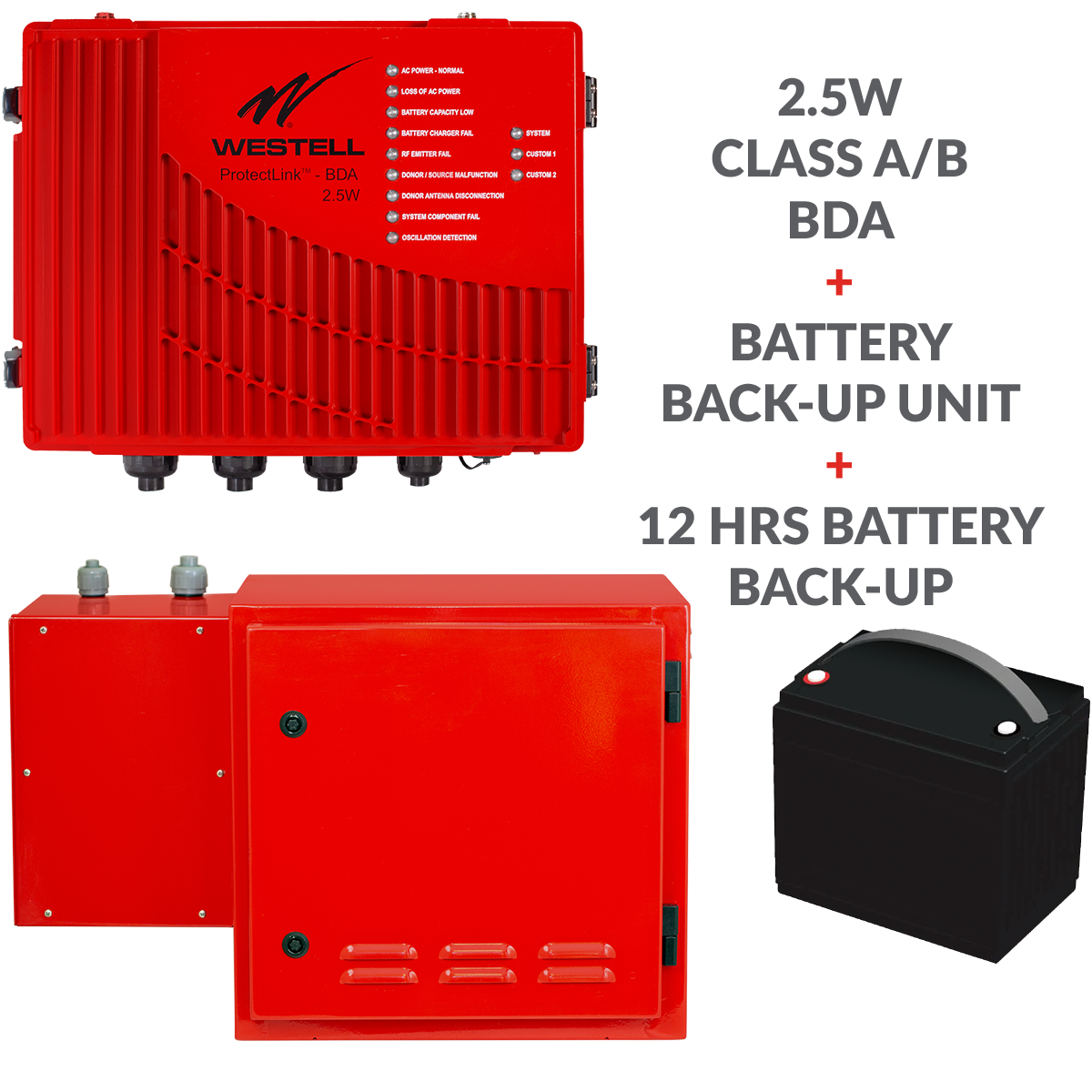

ProtectLink 2.5W BDA / Repeater, Model CS45-734-834

• Class B and Class A operation
• 2.5W downlink RF power per band
• Intelligent oscillation management, self-healing
• 90 dB downlink gain, 80 dB uplink gain
• Built in front panel annunciator with additional custom LED’s
• Fiber DAS ready* with SMA ports
• Built-in remote annunciator communications link
• Emergency Transmit Disable
• Supports SNMP
• Fast uplink squelch response per filter
• Independent gain control per filter
• Compact footprint
• NEMA 4 conduit glands included
• Supports both digital and analog modulation
• Supports P25 phase 1 & 2
• P25 phase 2 AGC (Automatic Gain Control) per time slot to address near/far users on the same channel
• 3-year warranty
• PSERN June 1 2025 compliant**

^{* FiberDAS requires ProtectLinkV2 HE to support Fiber DAS expansion. ** Compliant with PSERN June 1 requirement to automatically disable UL amplification after 60 minutes and re-enable UL amplification within 0.5 seconds of receiving signal higher than the uplink squelch threshold.}

Battery Back-Up Cabinet, Model CS19-BBU-005

• 24-hour back-up capable
• NFPA 1221/2524 compliant

• AC input, 12 VDC output
• Power system UL 62368-1 listed
• NEMA 4/3R protection
• -30°C to +50°C operation

• On off AC/DC switch
• Watertight glands
