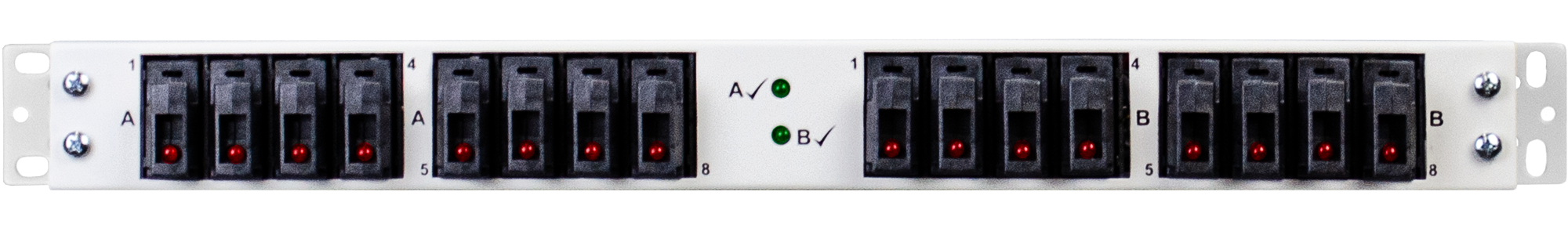

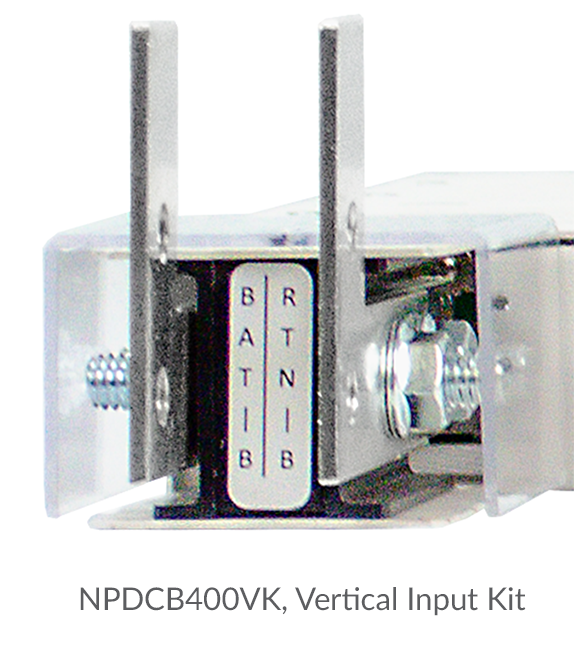

NPTPA400D8-ST-V, High Density TPA Panel with Screw Terminals and Vertical Input Kit

Specifications
Resources

Voltage:	+\-24Vdc, +\-48Vdc
Input Bus:	Dual
Current / Bus:	320A @ 55C, 280A @ 65C, 240A @ 70C
Input Terminals:	Dual stud 3/8-16 @ 1” C-C
Outputs / Bus:	8
Current / Output:	50A max rated, 40A max continuous

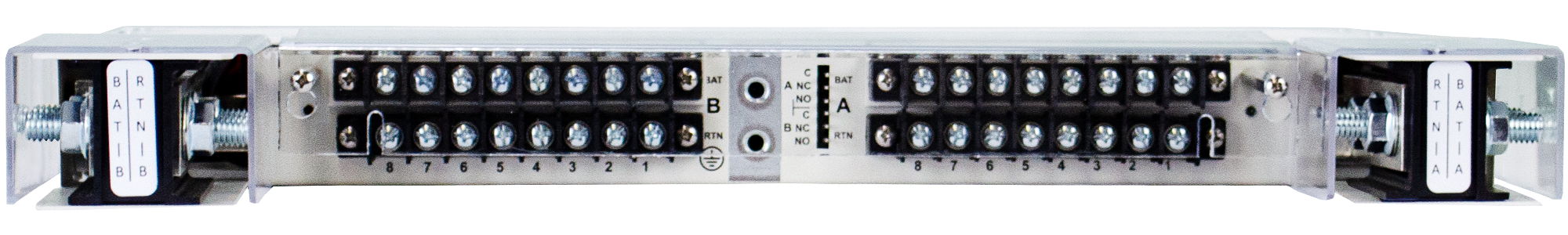

Output Terminals:	Please see data sheet in Resources tab below
Ground Terminals:	Dual threaded-hole ¼-20 @ 5/8” C-C
Alarms:	LED @ front panel and fuse holder; Dry-form C: NC, NO, C pins
Dimensions (W x H x D):	17” x 1.75” x 15.8”
Weight:	~15 lbs
Compliance:	Please see data sheet in Resources tab below
Color:	Off-white

NPTPA400D8-ST-V Documentation
