CS40-PLV2FIBER
CS40-PLV2FIBER

CS40-PLV2FIBER

The ProtectLinkV2 Fiber DAS HE (headend) and RE (remote end) units provide fiber to RF conversion and communication between the headend and remote units. ProtectLinkV2 Fiber HE can support fiber connectivity for up to four remotes with single mode fiber connecting an existing BDA to the PLV2 HE.

Westell’s ProtectLinkV2 Fiber DAS HE (headend) and RE (remote end) allow for fiber connectivity for UHF or VHF with public safety BDAs (bi-directional amplifier) and ORUs (optical remote unit), and they provide fiber to RF conversion and communication between the headend and remote units.

ProtectLinkV2 Fiber HE can support fiber connectivity for up to four remotes with single mode fiber connecting an existing BDA to the PLV2 HE.

The headend BDA is connected to the PLV2 HE via low level RF coax uplink and downlink feeds. Each HE can be daisy chained via one of the two RS485 ports expanding the remote count for each HE unit for support of additional remotes.

ProtectLinkV2 Fiber DAS HE (headend) and RE (remote end) allow for fiber connectivity with:

ProtectLink CS40 Series UHF BDA, Class A/B

ProtectLink CS40 Series VHF BDA, Class A/B

Applications: Enabling UHF/VHF Fiber DAS – ProtectLinkV2 Fiber HE can support fiber connectivity for up to four remotes with single mode fiber connecting an existing BDA to the PLV2 HE.

How to Buy

Product Highlights

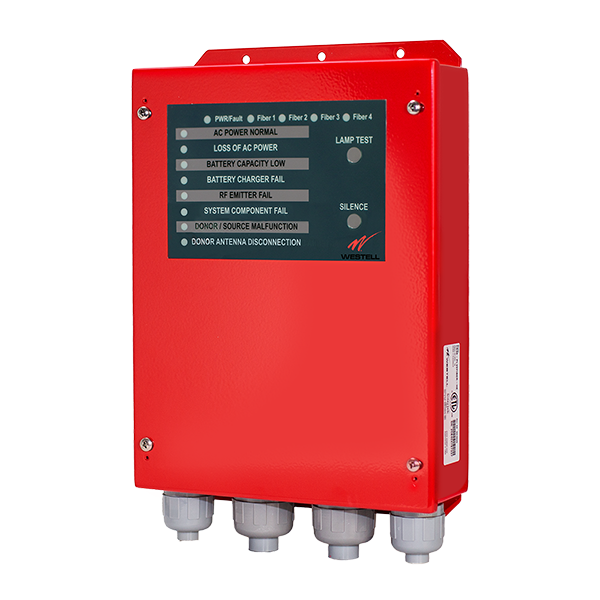

Product Highlights ProtectLinkV2 Fiber DAS HeadendProduct Highlights ProtectLinkV2 Fiber HE:

  • Compatible with Westell CS40 UHF headend BDAs and remotes and CS40 VHF headend BDAs and remotes
  • Supports headend BDA via SMA connector(s) with one uplink and one downlink
  • Allows expansion for up to four remotes
  • Connects to headend BDA via SMA cables, one uplink and one downlink, 12 or 28 VDC power and RS485 cable
  • One single mode fiber connection for each remote
  • Bi-directional communication link for alarm aggregation of remotes
  • Automatic level detection
  • Ability to daisy chain additional ProtectLinkV2 Fiber HE systems to support 8, 12, and 16 remotes via local RS485 and power cables
  • Remote auto discovery
  • Software upgradeable
  • Max distance 5 km for HE to RE
  • Status indicator for fiber 1 through 4
  • PWR/Fault LED

Product Highlights ProtectLinkV2 Fiber DAS Remote End REProduct Highlights ProtectLinkV2 Fiber RE:

  • Compatibility with CS40 UHF remotes and CS40 VHF remotes
  • Connects single remote via SMA connector(s) one uplink and one downlink, 12 or 28 VDC and RS485 cable
  • One single mode fiber connection back to headend
  • Bi-directional communication link for alarm aggregation of remotes
  • Automatic level detection
  • Remote auto discovery
  • Software upgradeable
  • Max distance 5 km for HE to RE
  • Status indicator for fiber
  • PWR/Fault LED

Built in UL2524/NFPA 1225 Annunciator

  • Annunciator LED’s with lamp test and silence
  • AC power normal
  • Loss of AC power
  • Battery capacity low
  • RF emitter fail
  • System component fail
  • Donor/source malfunction
  • Donor antenna disconnection
  • Battery charger fail alarm

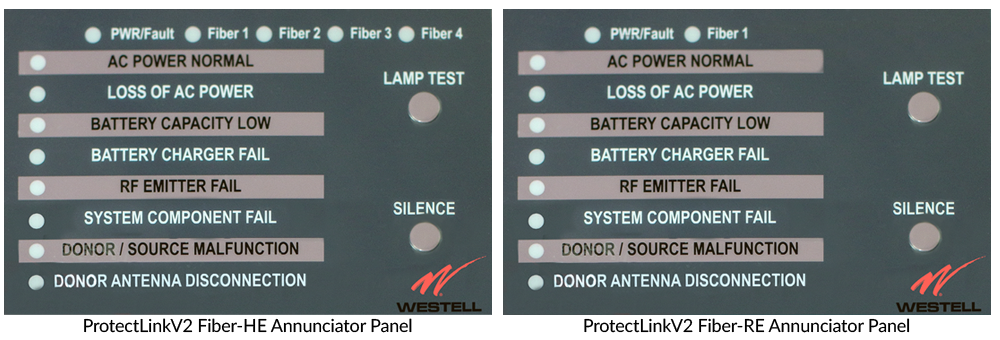

ProtectLinkV2 Fiber DAS Annunciator Panel

Back to Product List
_____________________________________________
ProtectLinkV2 HE Electrical Specifications
Main power input 12 to 28 VDC, supplied by BDA
Power consumption 13.2 W
DC input range 12 to 28 VDC
Operating current 1.6 Amps max
Typical DC current 1000 mA (12VDC), 450 mA (28 VDC)
DL output power 0 dBm typical
UL output power -40 dBm typical
Frequency range Frequency range
ALC range 15 dBm
_____________________________________________
ProtectLinkV2 HE Mechanical Specifications
Dimensions (H x W x D) 11.25” x 8.75” x 2.75”, not including glands
Approximate weight (lbs) 9.25
Mounting Wall-mount
Weatherproofing IP65/NEMA Type 4
Cable feedthroughs Cordgrips and flex conduit fittings included
Temperature -30° C - +50° C
RF connectors (2) SMA (f) UL/DL ports
Fiber count 4
Power (2) Pin 28 VDC
Color Red
RS485 2
_____________________________________________
ProtectLinkV2 HE Optical Specifications
Optical connector SC/APC
Optical link budget 5 dB0
Fiber type Single mode
_____________________________________________
ProtectLinkV2 RE Electrical Specifications
Main power input 12 to 28 VDC, supplied by BDA
Power consumption 6.6 W
DC input range 12 to 28 VDC
Operating current 500 ma (12VDC), 220 ma (28 VDC)
DL output power 0 dBm typical
UL output power -40 dBm typical
Frequency range 100-900MHz
ALC range 15 dBm
_____________________________________________
ProtectLinkV2 RE Mechanical Specifications
Dimensions (H x W x D) 11.25” x 8.75” x 2.75”, not including glands
Approximate weight (lbs) 7.6
Mounting Wall-mount
Weatherproofing IP65/NEMA Type 4
Cable feedthroughs Cordgrips and flex conduit fittings included
Temperature -30° C - +50° C
RF connectors (2) SMA (f) UL/DL ports
Power (2) Pin 24 VDC
Color Red
RS485 2

CS40-PLV2FIBER Documentation

8 Remotes Supporting UHF or VHF

Colocated Headend Equipment


Fiber DAS Illustration, 8 Remotes Supporting UHF or VHF, Colocated Headend Equipment
